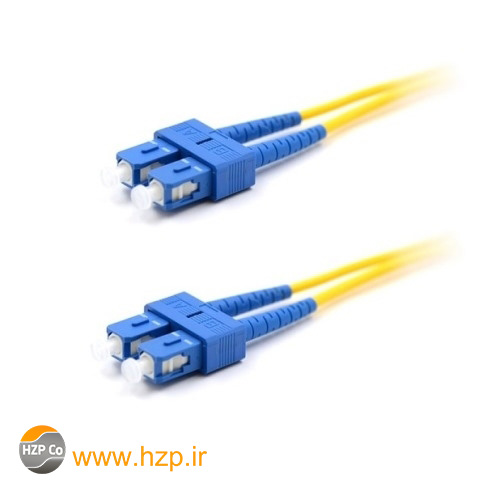

پچ کورد فیبر نوری SC-SC /UPC سینگل مود، Duplex، روکش PVC، قطر ۳mm SC UPC to SC UPC Duplex 2.0mm PVC(OFNR) 9/125 Single Mode Fiber Patch Cable
برای اطلاع از قیمت‌ها و موجودی با شماره‌های زیر تماس بگیرید
برند:
کد کالا:
ایران کد کالا:
ویژگی های محصول
The 9/125μm single mode fiber optic cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
ارسال سریع
ارائه فاکتور رسمی
ضمانت اصل بودن
پشتیبانی ۲۴ ساعته
| مخشصات تکمیلی | SC-SC : CONNECTORE TYPE UPC-UPS : POLISH TYPE |
|---|
پچ کورد فیبر نوری SC-SC /UPC سینگل مود، Duplex، روکش PVC، قطر ۳mm

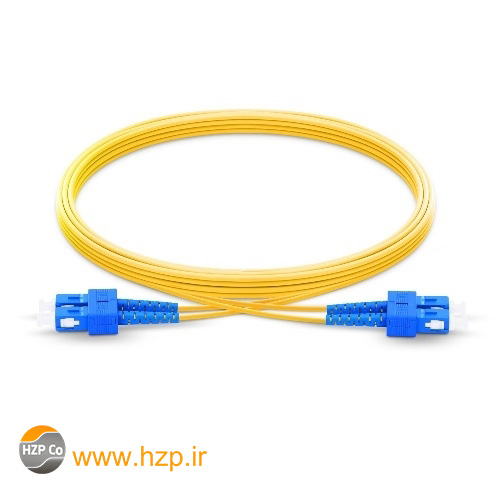

SC UPC to SC UPC Duplex 2.0mm PVC(OFNR) 9/125 Single Mode Fiber Patch Cable
High Quality and Cost-effective 9/125μm Single Mode Fiber Optic Cable
The 9/125μm single mode fiber optic cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
| Connector | SC to SC | Jacket OD | ۲٫۰mm |
| Fiber Mode | ۹/۱۲۵μm | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | ۱۳۱۰/۱۵۵۰nm |
| Fiber Type | Duplex | Jacket Material | PVC |
| Insertion loss | ≤۰٫۳dB | Interchangeability | ≤۰٫۲dB |
| Return loss | ≥۵۰dB | Vibration | ≤۰٫۲dB |
| Operating temperature | -۴۰~۷۵°C | Storage temperature | -۴۵~۸۵°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G.652.D |
Application between SC-SC Duplex Connector and 100G CPAK Transceiver
۱۰۰G CAPK fiber optics are the rising star, and SC-SC Duplex SMF fiber patch cable is the essence to form a link between them. The following image with other accessories can make us resonate to realize wider application.
Product Highlights
Industry Standard Flammability Rating OFNR (Riser) Jacket Fiber Optic Cable
The industry standard duplex fiber connector meets EIA/TIA 604-2 with ceramic ferrule for high speed cabling networks.
|
 |
 |
| Zirconia Ceramic Ferrule Optimum IL and RL | ۲٫۰mm Cable Boot, Provides Maximum Protection | Printing helps clarify and recognize different cables |
High Quality Fiber Optic Cable Guarantee
