پچ کورد فیبر نوری، سینگل مود، LC-SC/UPC, Simplex، روکش PVC، قطر ۲mm ۰ ریال LC UPC to SC UPC Simplex 2.0mm PVC(OFNR) 9/125 Single Mode Fiber Patch Cable
برای اطلاع از قیمت‌ها و موجودی با شماره‌های زیر تماس بگیرید
برند:
کد کالا:
ایران کد کالا:
ویژگی های محصول
The 9/125μm single mode fiber optic cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
ارسال سریع
ارائه فاکتور رسمی
ضمانت اصل بودن
پشتیبانی ۲۴ ساعته
| مخشصات تکمیلی | LC-SC : CONNECTORE TYPE UPC-UPS : POLISH TYPE |
|---|

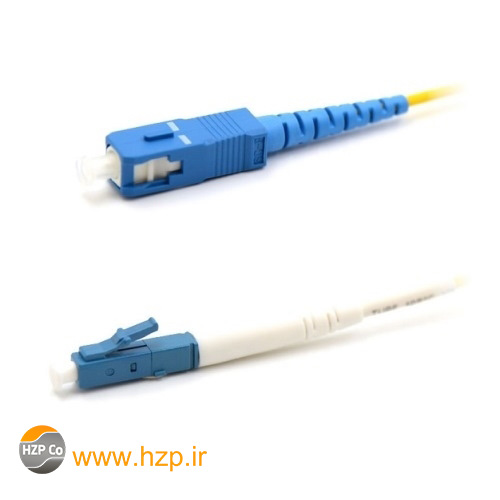

LC UPC to SC UPC Simplex 2.0mm PVC(OFNR) 9/125 Single Mode Fiber Patch Cable
High Quality and Cost-effective 9/125μm Single Mode Fiber Optic Cable
The 9/125μm single mode fiber optic cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
| Connector | LC to SC | Jacket OD | ۲٫۰mm |
| Fiber Mode | ۹/۱۲۵μm | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | ۱۳۱۰/۱۵۵۰nm |
| Fiber Type | Simplex | Jacket Material | PVC |
| Insertion loss | ≤۰٫۳dB | Interchangeability | ≤۰٫۲dB |
| Return loss | ≥۵۰dB | Vibration | ≤۰٫۲dB |
| Operating temperature | -۴۰~۷۵°C | Storage temperature | -۴۵~۸۵°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G.652.D |
Product Highlights
Industry Standard Flammability Rating OFNR (Riser) Jacket Fiber Optic Cable
The industry standard simplex fiber connector meets EIA/TIA 604-2 with ceramic ferrule for high speed cabling networks.
 |
 |
 |
| Zirconia Ceramic Ferrule Optimum IL and RL | ۲٫۰mm Cable Boot, Provides Maximum Protection | Printing helps clarify and recognize different cables |
High Quality Fiber Optic Cable Guarantee
